Original price was: $7,999.00.$3,999.00Current price is: $3,999.00.

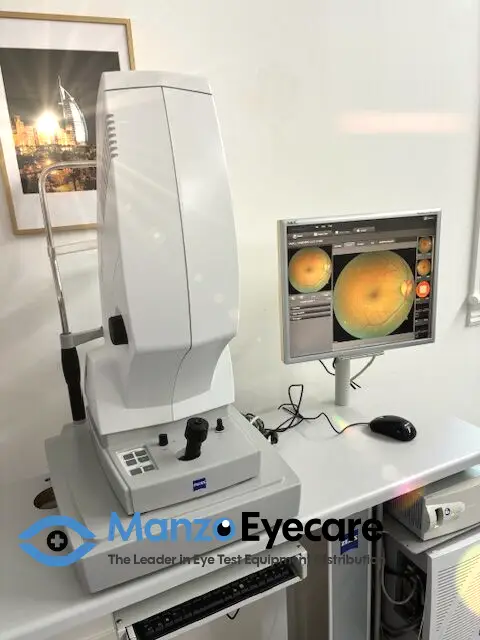

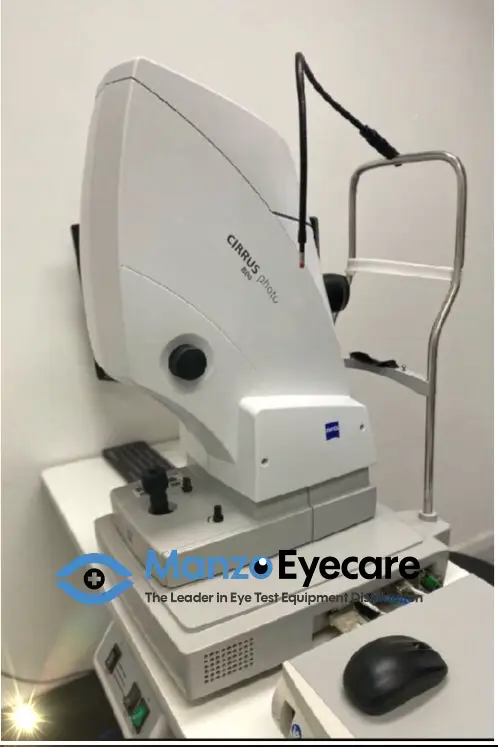

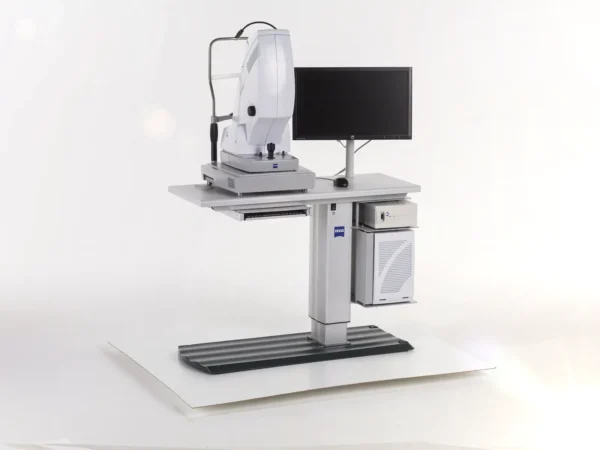

ZEISS CIRRUS Photo 800 combines a mydriatic/non-mydriatic fundus camera with CIRRUS HD-OCT technology in one compact and versatile system.
In Stock
ZEISS CIRRUS Photo 800 combines a mydriatic/non-mydriatic fundus camera with CIRRUS HD-OCT technology in one compact and versatile system. Available in two models, CIRRUS photo 600 and CIRRUS photo 800, it provides multiple insights for comprehensive retina and posterior segment care.
Broader Clinical Insights
By simultaneously providing high-quality fundus images and OCT scans, CIRRUS photo facilitates broader, more comprehensive diagnostic insights. Each modality by itself is a premier quality diagnostic instrument. Together, they enable you to characterize and examine the patient’s condition more completely and easily.
Greater diagnostic certainty
Comprehensive, high-quality diagnostics form the basis for informed decisions. With its superb multimodality visualizations, CIRRUS photo delivers exceptional insights, supporting greater diagnostic accuracy and certainty.
Added practice value
As a highly efficient and versatile instrument, CIRRUS photo offers substantial value. In addition to streamlining your workflow and
supporting more comprehensive assessments, it saves time and space.
By eliminating the need to move patients to another instrument, it also enhances the examination experience – for patients and practice staff alike.
Main system
| Field angle | 45° and 30° |
| Pupil diameter | ≥ 4.0 mm; ≥ 3.3 mm (30° small pupil mode) ≥ 2.0 mm for OCT scans only |
| Refractive error compensation | +35 D … -35 D, continuous |
| Working distance | 40 mm (patient’s eye – front lens) |
| Fixation targets | External and internal |
| Internal | Attention mode and free position or programmed sequences |
| Database | Patient information and images with field angle, FA time, R/L recognition and date of visit are stored |
| Monitor | 23” TFT (1920 x 1200) |
| Instrument table | Asymmetric, suitable for wheelchairs |
| Accessories | Network printer, sliding keyboard shelf, network isolator, FORUM eye care data management system |
Fundus camera
| Capture modes | Color, red-free, blue, red and fundus autofluorescence pictures, as well as pictures of the anterior segment, + fluorescein angiography and ICG angiography |
| Filters | Filters for green, blue and fundus autofluorescence images, UV/IR barrier filters + FA + ICGA: exciter and barrier filters |
| Capture sequence | From 1.5 seconds (depends on flash energy) |
| Capture sensor | CCD 5.0 megapixels |
| Xenon flash lamp | 16 flash levels (30 Ws)-24 flash levels (80 Ws) |
OCT
| Technology | Spectral domain OCT |
| Optical source | Superluminescent diode (SLD), 840 nm |
| Scan speed | 27,000 A-scan per second |
| A-scan depth | 2.0 mm (in tissue), 1024 points |
| Resolution | Axial 5 μm (in tissue), transverse 15 μm (in tissue) |
Computer
| Operating system | Windows Embedded Standard 7 |
| Hard drive | Storage of over 30,000 fundus images with OCT cube scans (present size: 320 GB) |
| Interfaces | USB ports and network connectors, DVI port |
| Export/import | Image formats: BMP, TIFF, JPEG, PNG Patient list, DICOM MWL, DICOM storage |
Dimensions
| Main unit | (W 16.1 x D 18.9 x H 26.8 inches) |
| Weight (main unit) | (72.7 lbs) |
| Rated voltage | 100 … 240 V ±10% |
| Frequency | 50 / 60 Hz |
| Power consumption | 400 VA (w/o instrument table) |
