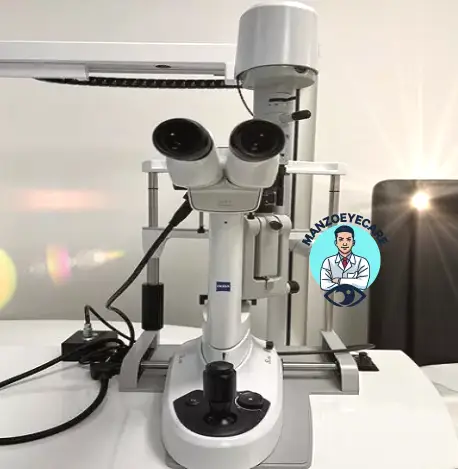

ZEISS SL 800 Slit Lamp Imaging Solution

Description

ZEISS SL 800 Slit Lamp is standard equipment for ophtalmolohists, optometrists and many opticians. Eye care professionals often have very different requirements in terms of the examinations they perform.

ZEISS SL 800 Slit Lamp reflect these distinctions. Delivering proven quality for reliable performance every day, they combine premium optics with superb mechanical performance and versatility. Excellent ergonomics, simple handling, convenient documentation and easy upgradeability have made them mainstays in practices around the world.

With perfectly balanced ZEISS optics, extensive illumination options and a user-friendly operator concept directly at your fingertips, the ZEISS SL 800 reveals details for diagnosis and optimizes your workflow. Furthermore, the modularity and the wide range of optional components and accessories adapt to your individual needs whenever necessary.

Superior optics for high-definition image quality.

Larger ZEISS lenses enable a better light-throughput. And in combination with the anti-reflex coating, they provide a high-definition image in true-to-life color with high contrast – even in 40x super magnification. Moreover, the apochromatic optimization greatly reduces chromatic and spherical aberrations in favor of visualizing structural details.

Innovative operator concept for an enhanced focus on your patients.

With the new AutoView, you can easily change magnification with the motorized two-button mechanism. The optional electronic QuickStop brake is also activated without the need to release the joystick. The intelligent stand-by EcoMode saves energy by shutting down automatically when not in use, while the slit lamp then turns on again by simply touching the joystick. In short the SL 800, the next generation of slit lamps from ZEISS, delivers proven performance in a modern design.

Extensive illumination and filter options.

With the VarioLight feature, you can now select your preferred
examination light – cold-white or warm-white. This allows
you to gain a sharper and clearer image, as well as a more
natural fundus impression. Together with the integrated and
optional filters and diffusor, you are equipped with an allaround setup for the observation of anterior and posterior segment.

ZEISS SL 800  Features

• High-Quality Optics : Apochromatic lenses with anti-reflective coating for high-definition images with true color and high contrast.
• VarioLight Illumination : Cold and warm light options for sharp images and a more natural view of the fundus.
• Integrated Filters : Red, blue, green (without red), and diffuser filters for various examination applications.
• Variable Magnification : Magnification settings of 6x, 10x, 16x, 25x, and 40x with ametropia compensation.
• Slit Adjustments : Continuously adjustable slit width from 0 to 12 mm and slit length from 1 to 12 mm with multiple steps.
• Slit Rotation and Tilt : Continuous rotation from 0° to 180° and vertically adjustable tilt from 0° to 20°.
• Innovative Control Concept : AutoView for motorized magnification change and optional electronic QuickStop.
• Intelligent Eco Mode : Automatic standby mode to save energy, reactivated with a simple touch of the joystick.

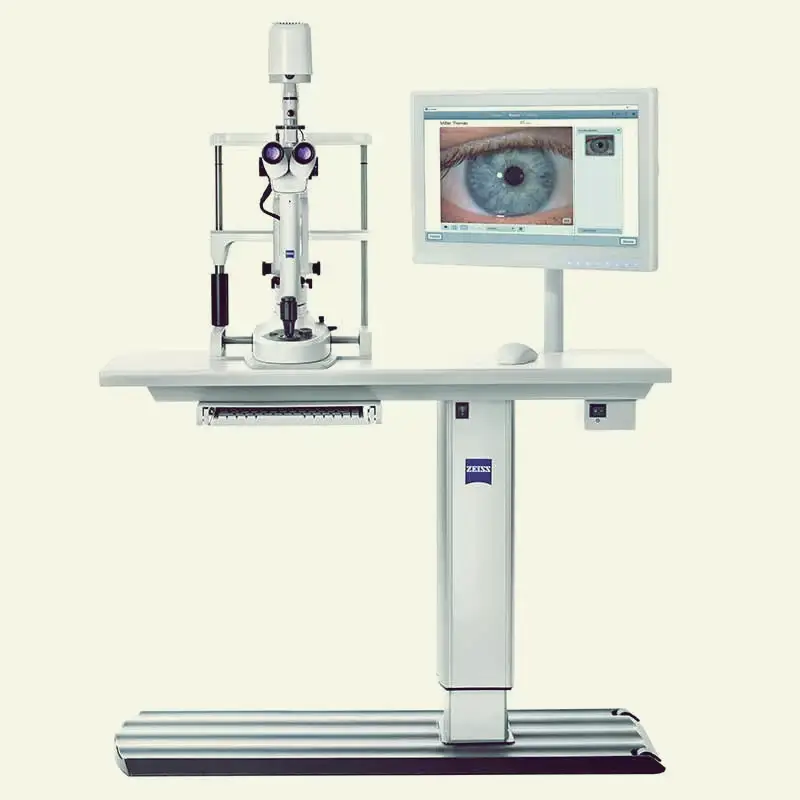

• Imaging Options : ZEISS SL Imaging module for high-resolution image and video capture, including the compact SL cam camera and SL Imaging software.
• Modular Accessories : AT 030 applanation tonometer, VarioView fundus observation, 20° adapter tube, and other accessories to customize use.
