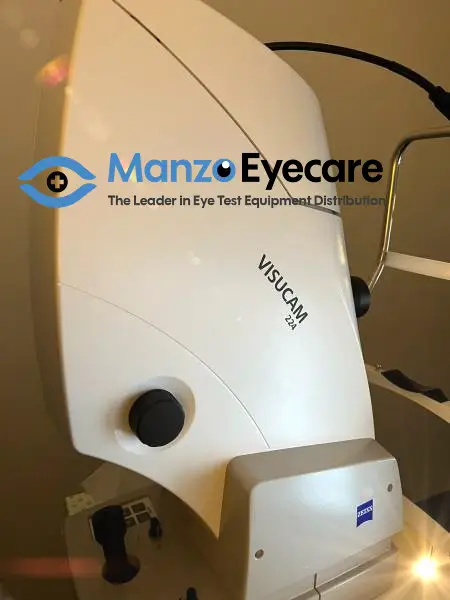

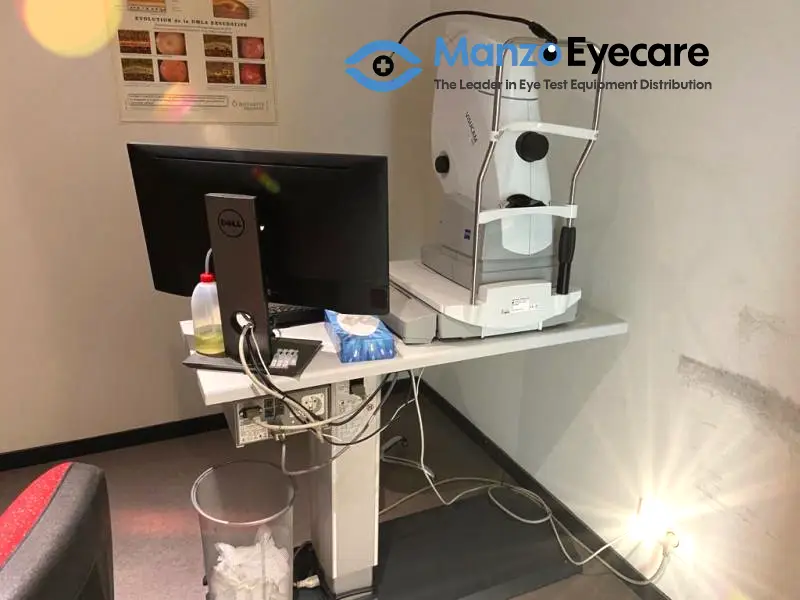

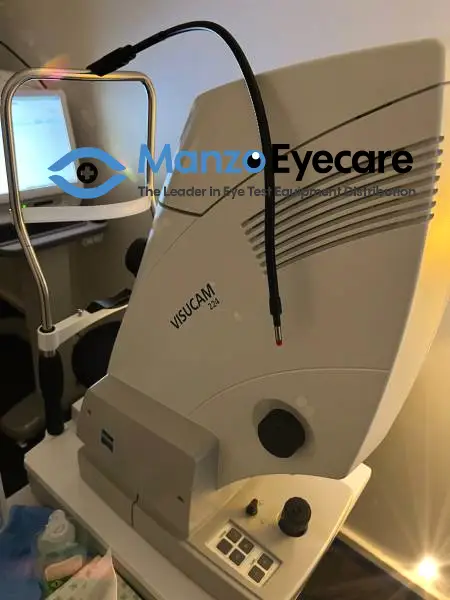

ZEISS VISUCAM 224 Fundus camera Ultra-High Resolution

Description

ZEISS VISUCAM 224 Fundus camera ultra-high resolution, with a 24-megapixel sensor and revolutionary ZEISS optics, produce brilliant, ultra-high resolution, detail-rich images to effectively aid in diagnosing and monitoring a broad range of eye diseases – from glaucoma and diabetic retinopathy to macular degeneration (AMD).

What Zeiss states about the Visucam 224. ZEISS VISUCAM fundus cameras, with a 24-megapixel sensor and revolutionary ZEISS optics, produce brilliant, ultra-high resolution, detail-rich images to effectively aid in diagnosing and monitoring a broad range of eye diseases – from glaucoma and diabetic retinopathy to macular degeneration (AMD).

Setting a new standard for resolution. Superior clarity, ultra-high resolution, revolutionary ZEISS optics

Both ZEISS VISUCAM models are fully featured non-mydriatic and mydriatic retinal cameras with numerous on-board image capture modes – fundus autofluorescence, non-mydriatic Color, Red-free, Red, Blue – and enhanced visualization functionality that provide powerful diagnostic insights for optimal patient care.

ZEISS VISUCAM 224 with FAF is a fully featured non-mydriatic and mydriatic retinal camera for comprehensive care.

Details define your decisions

Ultra-high resolution imaging and superior clarity promote efficient navigation from full-image overview to magnification of the smallest detail, allowing precise visualization within a particular area of interest.

Based on the internal high-resolution sensor and complete patient data, ZEISS VISUCAM allows a fast workflow for fundus exams so that captured images are immediately displayed on the monitor for fast assessment. Review is only a double-click away from capture.

FAF is an important non-invasive tool for the diagnosis and monitoring of Dry AMD, including geographic atrophy. In addition to AMD, FAF is useful for the following diseases:

• Retinal detachment (but more important in periphery)
• Inherited dystrophies (retinitis pigmentosa, Best and Stargardt disease)
• Central serous chorioretinopathy (CSCR, CSR or CSC)
• Vitelliform lesions
• Acute zonal occult outer retinopathy (AZOOR)
• Laser scars after macular edema
• Papillary drusen in papillary edema

ZEISS VISUCAM 224 Specification

• Dimensions(WxDxH) 410 mm x 480 mm x 735 mm
• Power Supply100 to 240 V +/-10% (self-adjusting)
• Weight (kg)27.5 kg
• Pupil Diameter= 4.0 mm
  = 3.3 mm (30° small pupil mode)

Reference

VISUCAM 224 brochure
