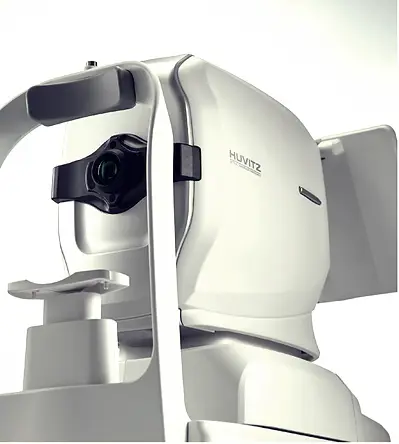

Huvitz HFC-1 Non-Mydriatic Fundus Camera

Description

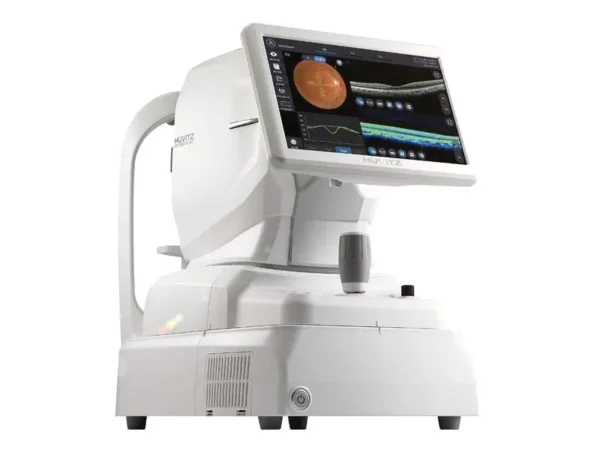

Huvitz HFC-1 Fundus Camera With large 12.1″ touchscreen display and 1 TB built-in PC, the Huvitz Fundus Camera is capable of capturing, displaying, and analyzing detailed full-spectrum retinal images.

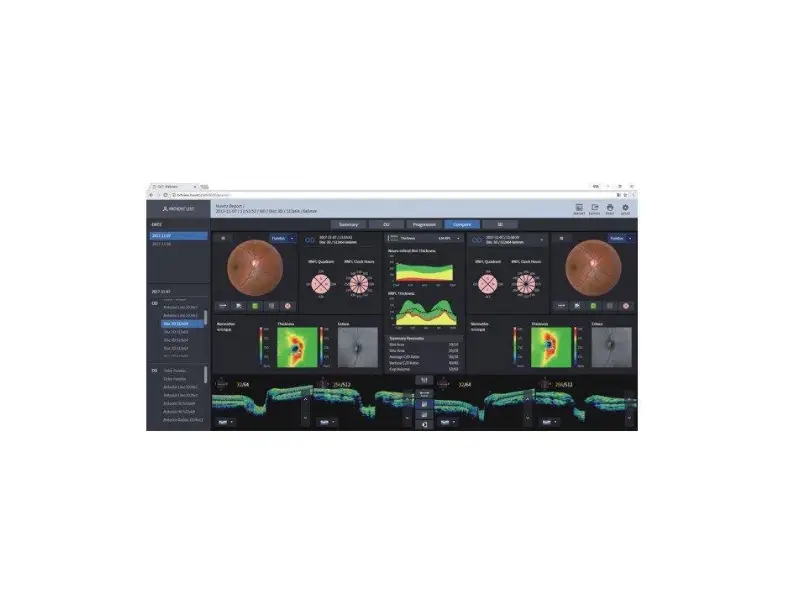

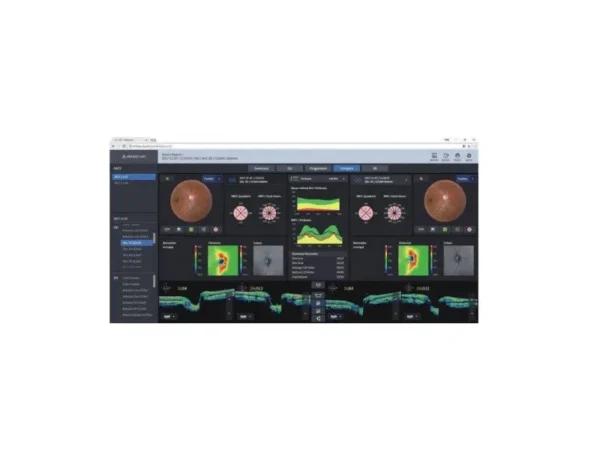

The Huvitz HFC-1 contributes to lesion analysis and clinical diagnosis through its integrated browsing system, completely without software.

Huvitz HFC-1 Non-Mydriatic Fundus Camera has highly accurate and advanced autodetection technology for sharp, quick and reliable retinal imaging and measurements. Adjust modes quickly while measuring differing pupil sizes. With a 20 megapixel high definition camera,  The HFC-1 retinal camera captures images with reduced Motion Artifact and clearly defines fine details. Eye care professionals can expect efficient, automated technology for smooth and easy use.

Automated tracking and shooting allow the HFC-1 Fundus Camera to adjust modes quickly and stably on its own while measuring differing pupil sizes. Its 20-megapixel high-definition camera captures images with reduced Motion Artifact and has the capability to enlarge images to study fine details.

The new HFC-1 Fundus Camera includes a variety of image modes: color, blue, red, red-free and cobalt which aid in examinations for Glaucoma, RNFL, Edema, Pigmentary Abnormalities and more. Eyecare providers can measure, analyze, diagnose and report all on site using the Fundus Camera’s build-in PC with its convenient 12.1” LCD touch screen to navigate

High Stability and Ease of Use

The Enhanced Visualization Technology(EVT) of HFC-1 helps to acquire high-quality images in any clinical cases. Therefore, it is specifically utilities when capturing fine pathological variation.

Fixation Target

By adjusting Fixation Target’s position on the display, users can acquire more accurate measurement results.

Panorama Function

The function provides major information to general evaluation for eyes since users can acquire high resolution images minimizing distortion

PC-integrated fundus camera for rapid analysis of high-resolution images

• High resolution and performance color camera
• Auto-Detection of pupil size and auto flash level function
• Fixation target for flexible configuration
• Panorama function for wide range of peripherals

Huvitz HFC-1 Feature

• Non-mydriatic fundus camera
• Built-in 20-megapixel color camera
• Minimum pupil diameter: 4.0 mm (normal mode),
• 3.3 mm (small pupil mode)
• Flash: White light, 10 levels
• Display: 12.1-inch, 1280×800 pixels, touchscreen color LCD

Diopter correction for the patient’s eye

• -33D ~ +33D total
• -33D ~ -7D with negative compensation lens
• -13D ~ +13D without compensation lens
• +7D ~ +33D with positive compensation lens

Huvitz HFC-1 Technical Specifications

• Internal Fixation Target: LCD (internal), white LED (external)
• Fundus Illumination Light: 760nm
• Power Supply: AC 100-240V, 50/60Hz, 1.6-0.7A
• PC: Built-in computer
• LCD Tilt Angle: 70°
• External Connection: 2 USB, 1 DP, 1 RGB, 2 LAN
• Dimensions: 330(W) x 542(D) x 521(H)mm
• Weight: 28kg
